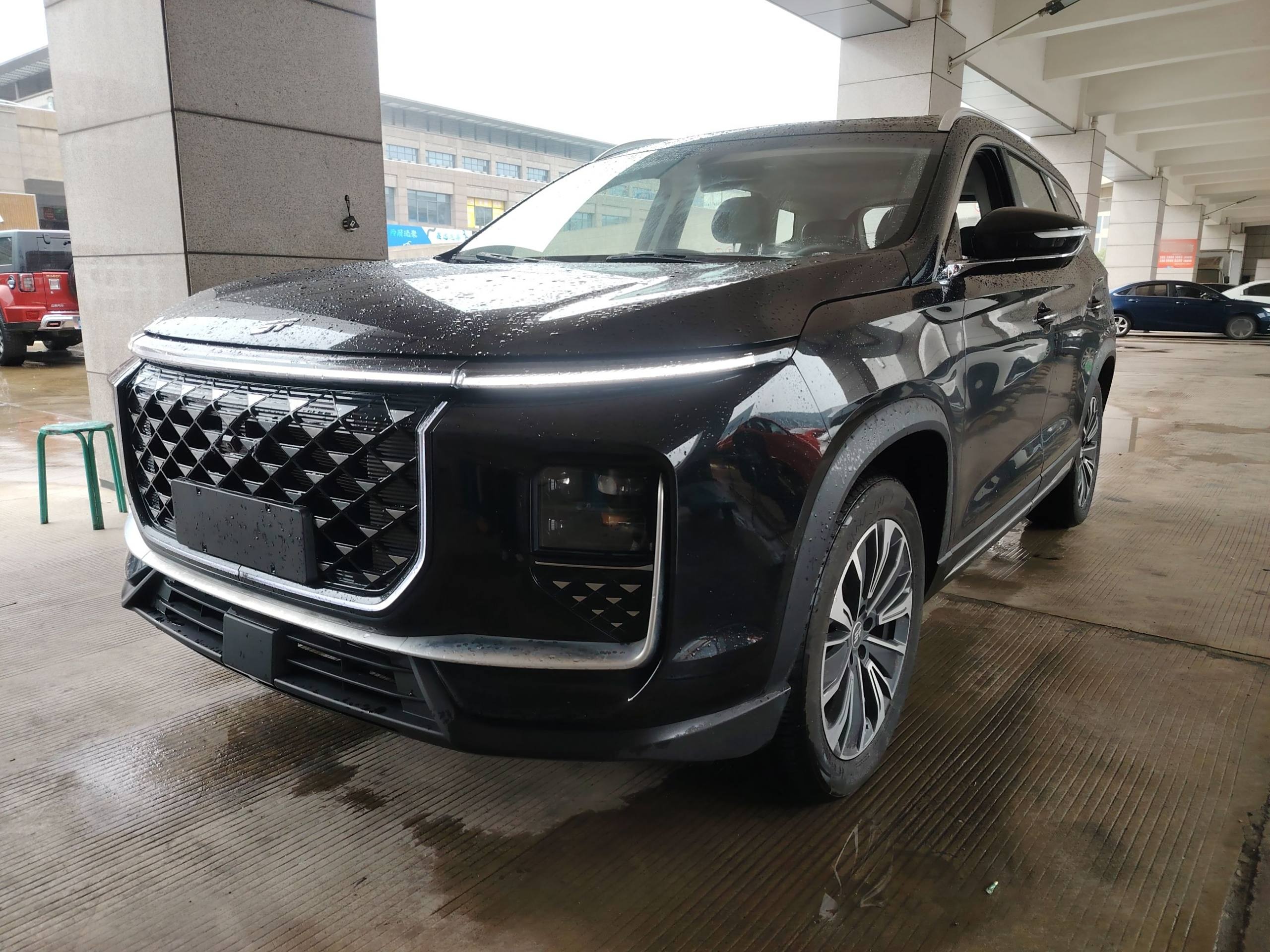

Jetour Shanhai L9 2024 1.5TD 2DHT Air 7-...
- Home
- /
- Car Details
Manufacturer: Chery Automobile
Production Method: Domestic
Release Date: 2023.11
Energy Type: Plug-in Hybrid

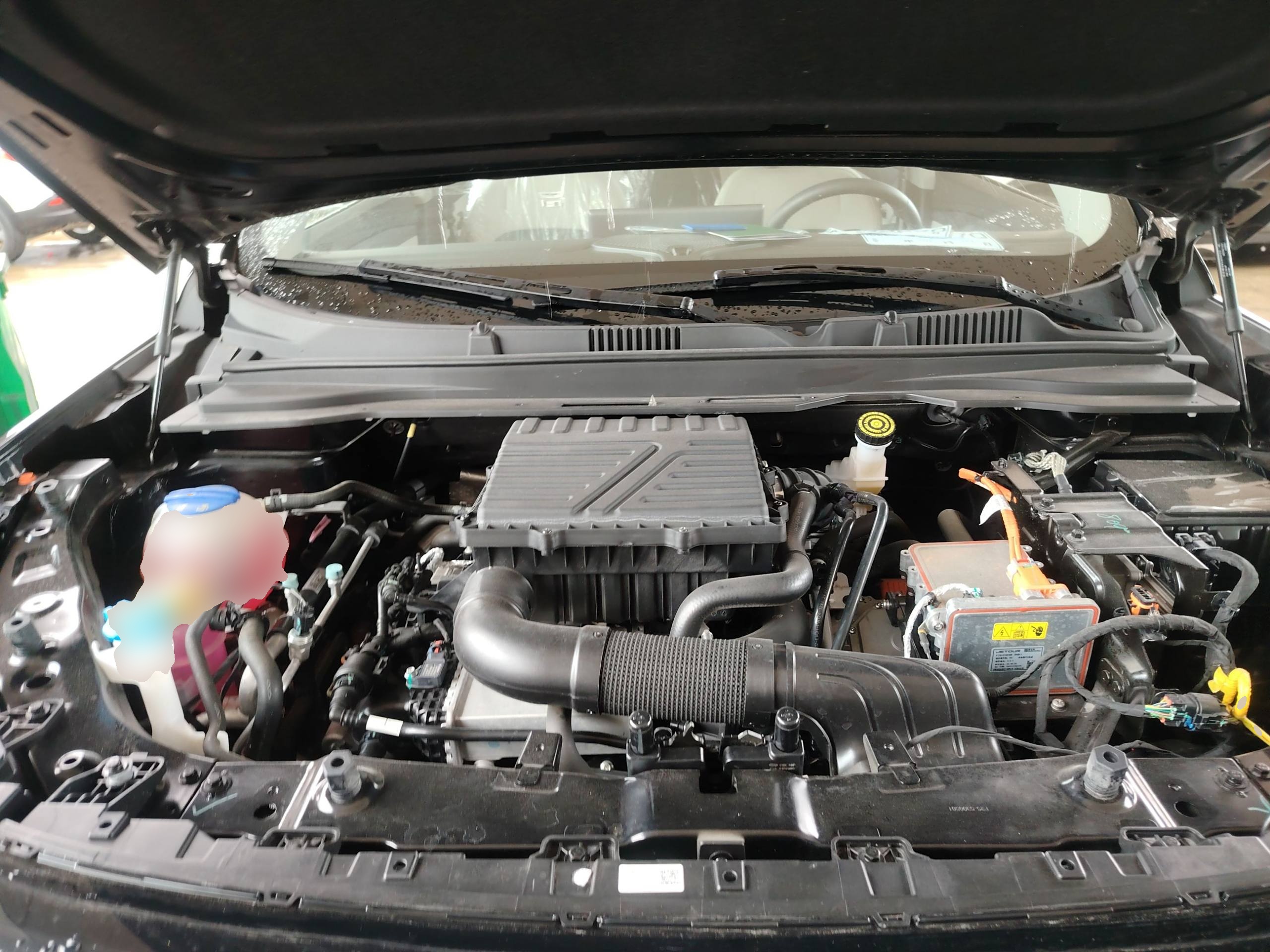

Engine: 1.5T, 156 hp, Inline-4
Gearbox: 2-speed Dedicated Hybrid Transmission (DHT)
Body Style: 5-door, 7-seater SUV
Engine Model: SQRH4J15
Intake: Turbocharged
Displacement: 1.5 L
Cylinders: 4 (DOHC, 4 valves each)
Max Power: 156 Ps (115 kW)
Max Torque: 220 N·m
Technology: Miller Cycle, Direct Injection
Fuel Grade: No. 92
Materials: Aluminum alloy (head & block)
WLTC Fuel Consumption: 1.49 L/100 km
Motor Type: Permanent Magnet Synchronous
Front Motor Power: 199 kW
System Total Power: 314 kW
System Total Torque: 395 N·m
Drive Motors: Dual
Battery Type: Ternary Lithium
Battery Capacity: 19.43 kWh
Charging:
Fast: 20–80% in 0.42 hrs
Slow: ~3.5 hrs
Range:
CLTC Pure Electric: 108 km
WLTC Pure Electric: 84 km
Wheelbase: 2850 mm
Length: 4862 mm
Width: 1925 mm
Height: 1784 mm
Front Track: 1610 mm
Rear Track: 1615 mm
Doors: 5
Seats: 7
Fuel Tank: 60 L

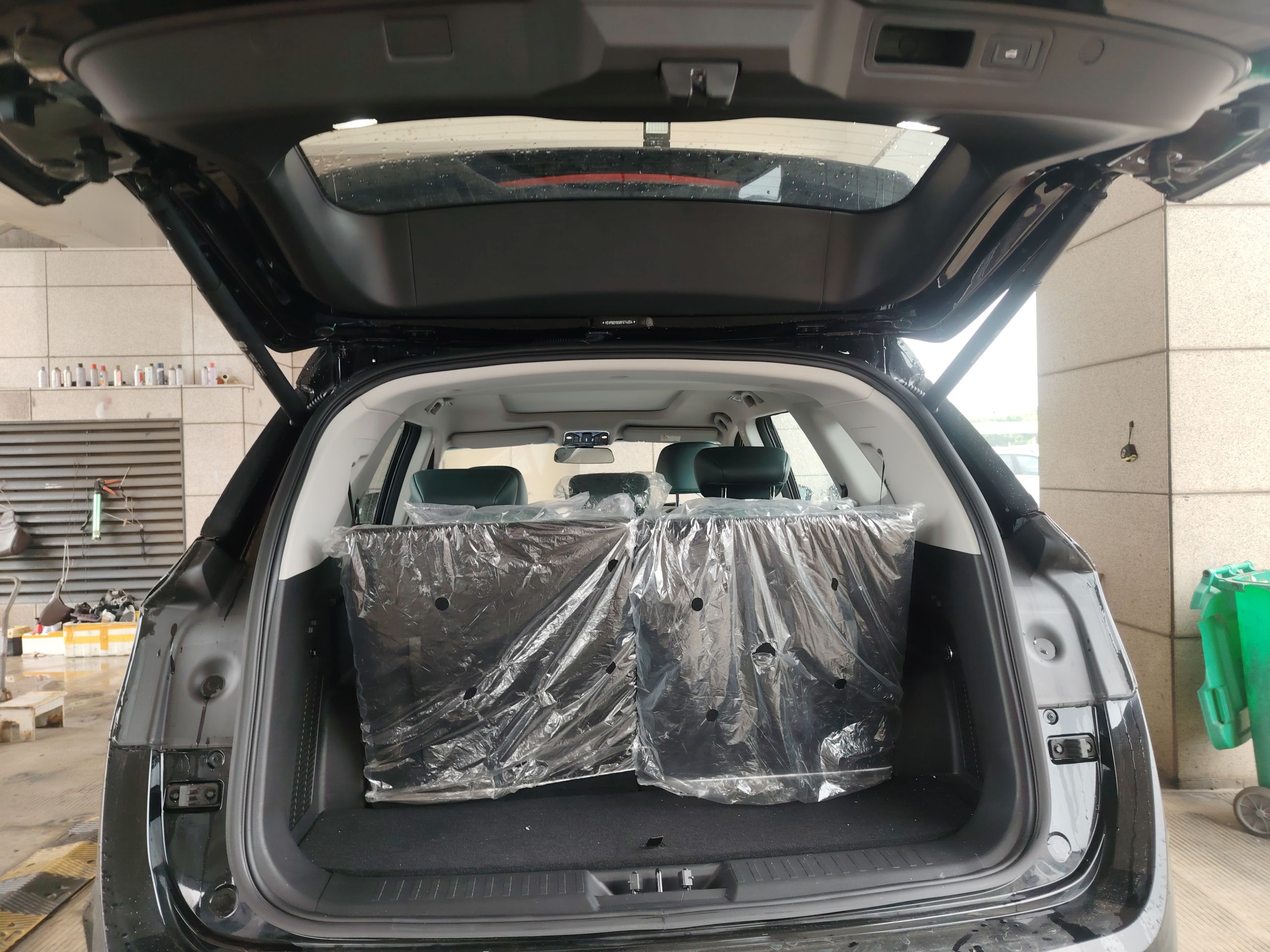

Luggage Volume: 1634 L
Curb Weight: 1892 kg
Drive Mode: Front-engine, front-wheel drive
Front Suspension: McPherson independent
Rear Suspension: Multi-link independent
Brakes: Ventilated disc (front) / Disc (rear)
Steering: Electric Power Steering

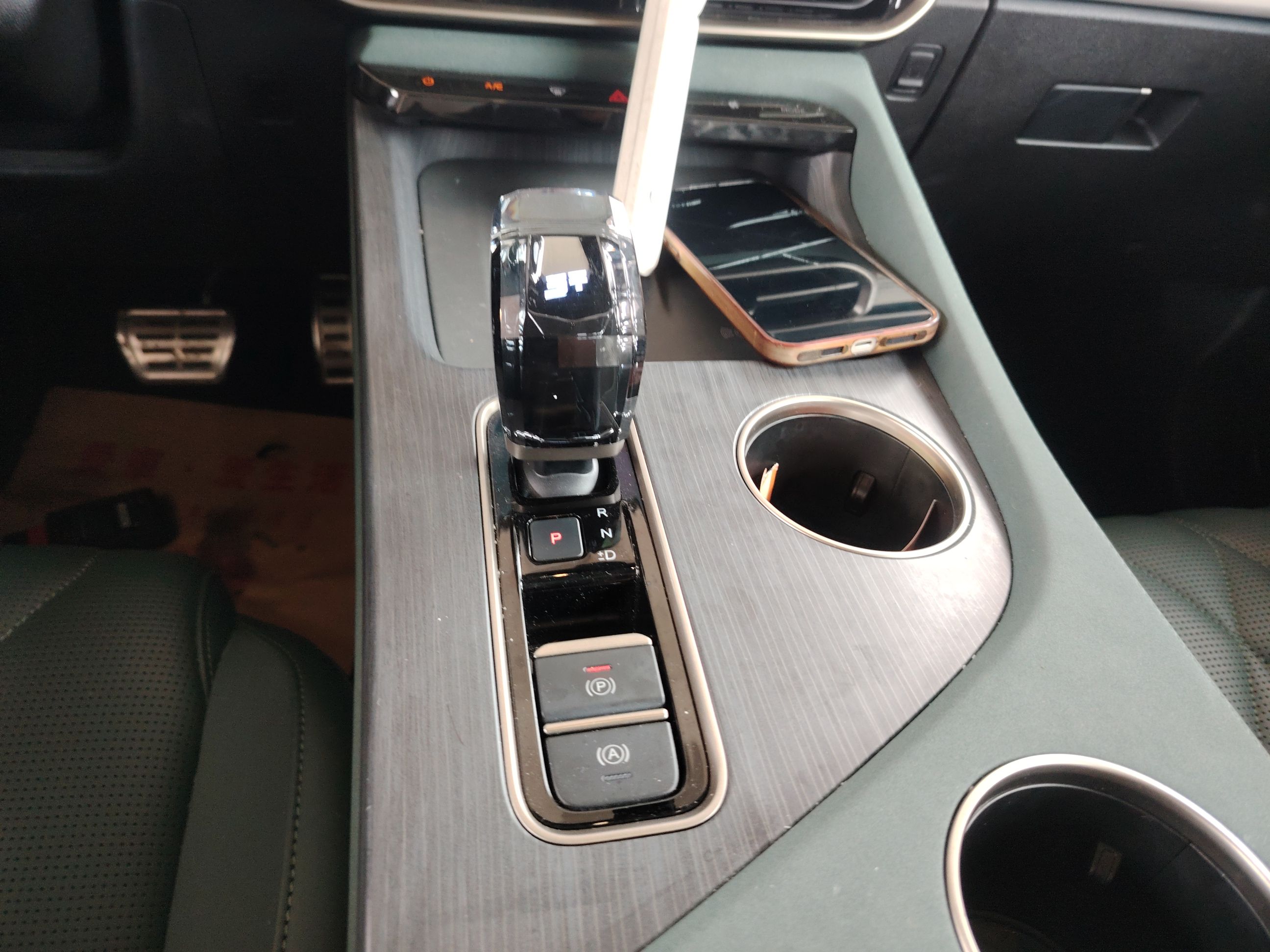

Parking Brake: Electronic

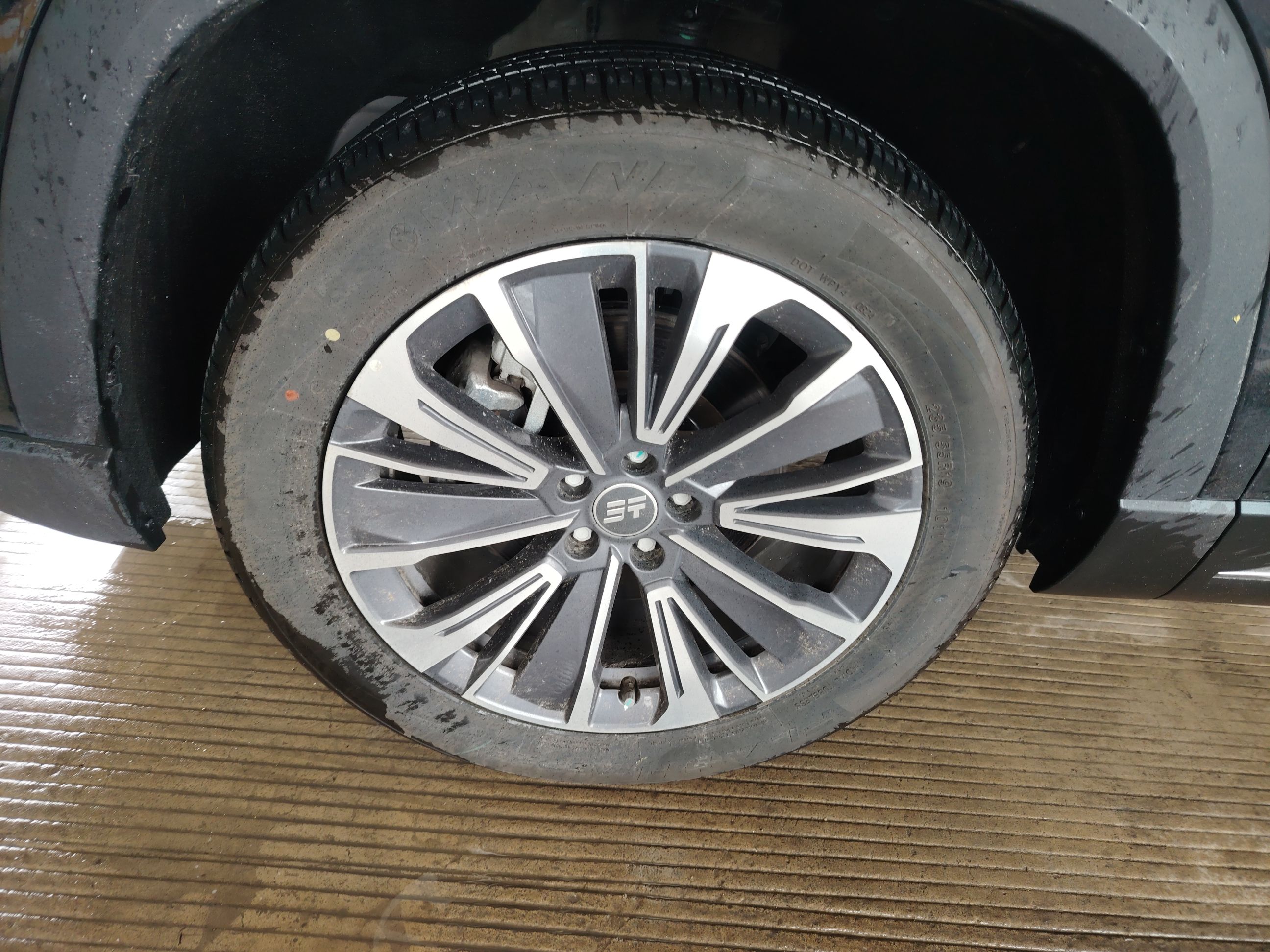

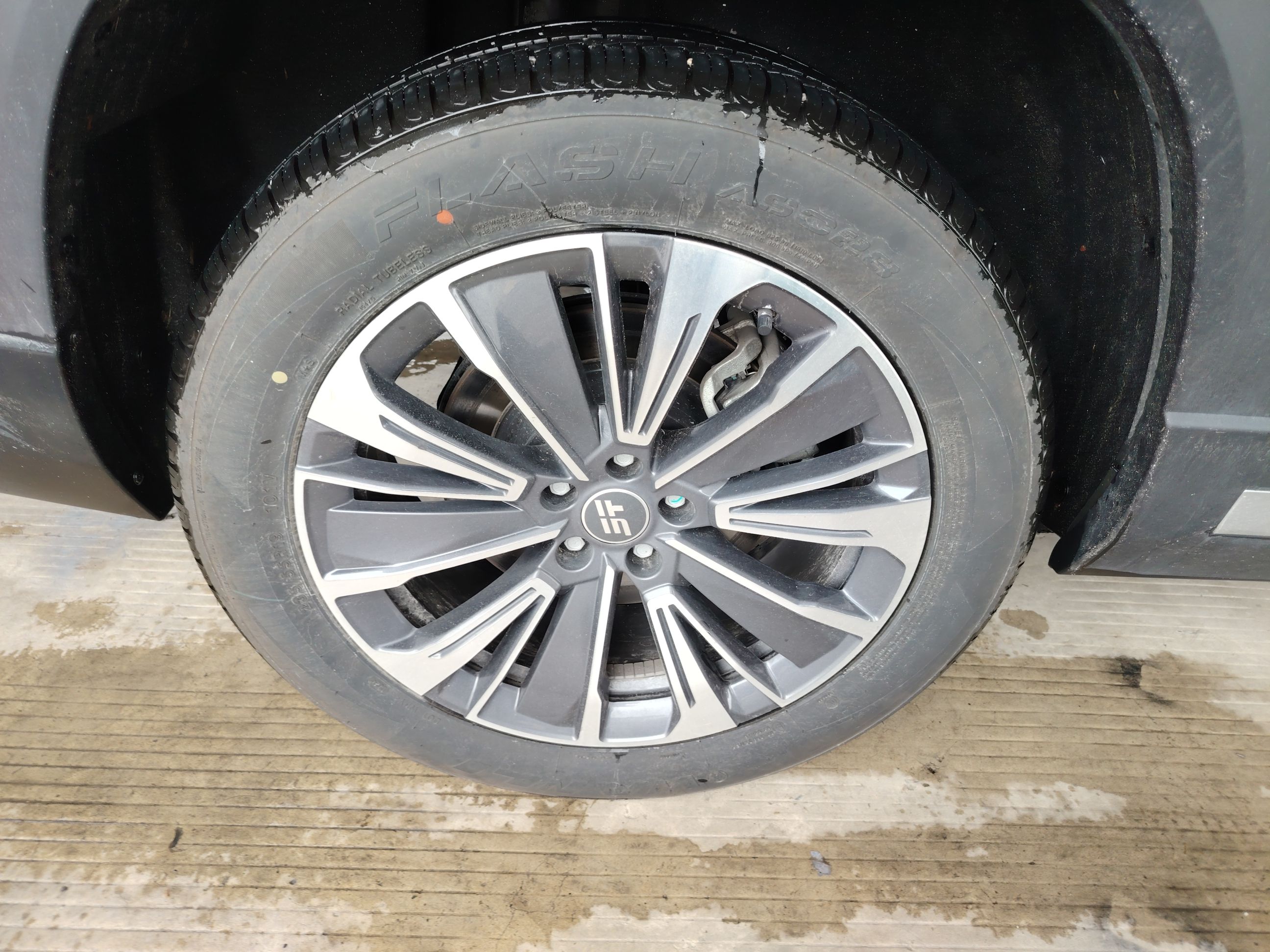

Front/Rear: 235/55 R19
Spare: Tire repair tools
Front & passenger airbags
Front & rear curtain airbags
Tire pressure monitoring
Seat belt reminder
EBD, Brake Assist
Traction Control
Stability Control (ESC)
Cruise control
Front & rear radar
Panoramic camera
Hill-start assist & steep descent control
Automatic parking
Navigation system
6 ultrasonic radars
4 cameras
Snapdragon 8155 car chip

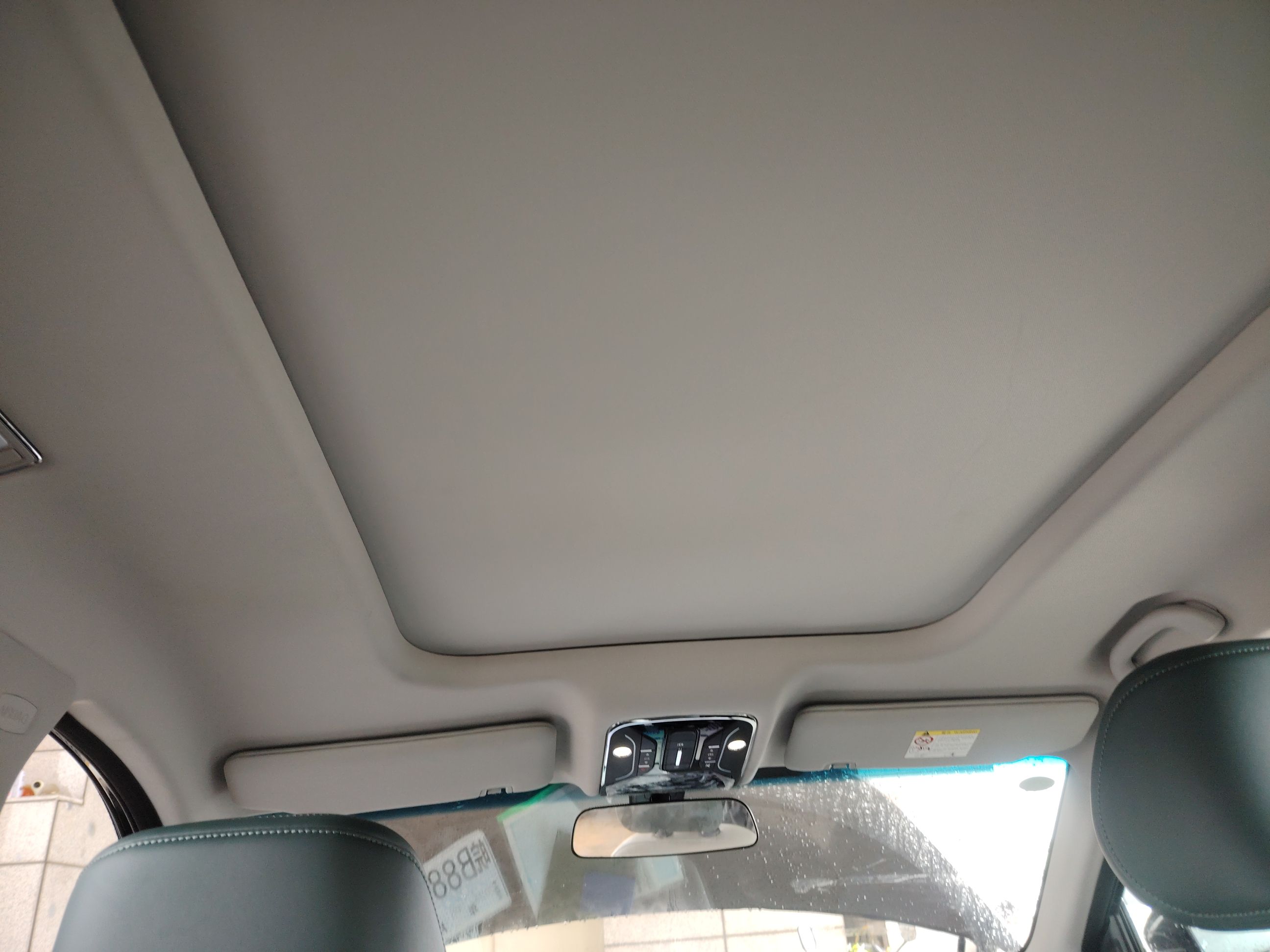

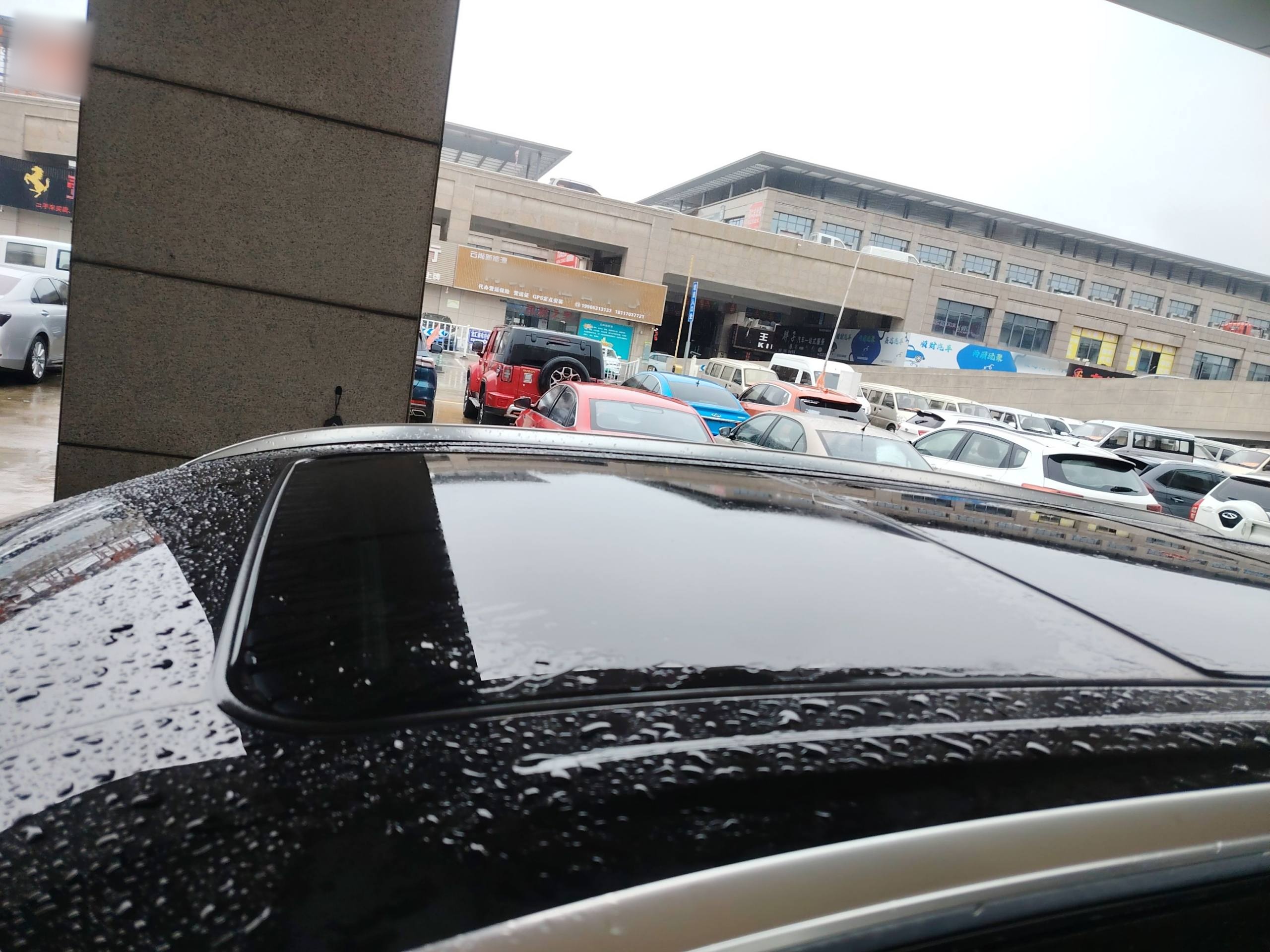

Panoramic sunroof
Aluminum alloy wheels
Electric tailgate
Roof rack

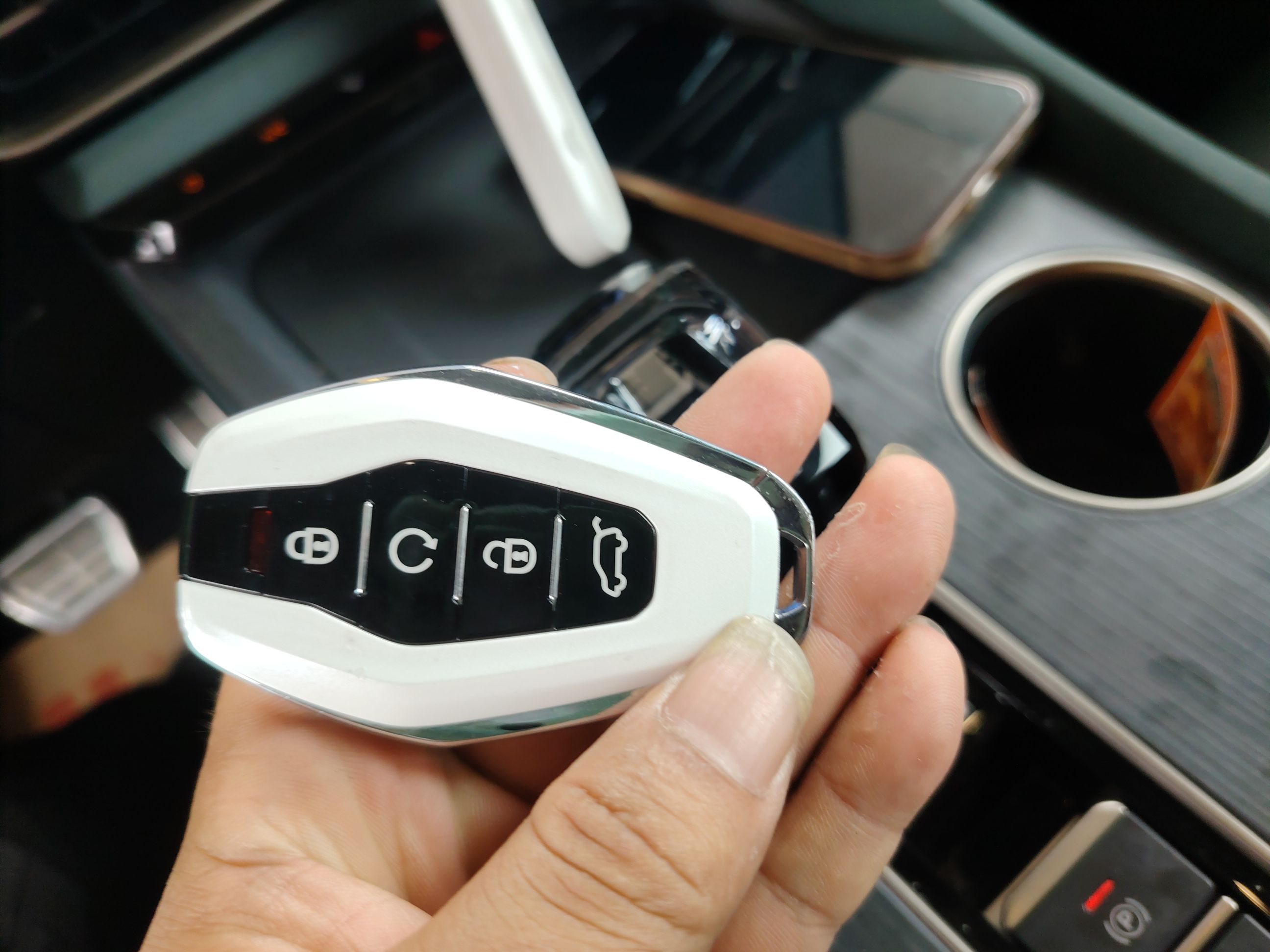

Keyless entry & start

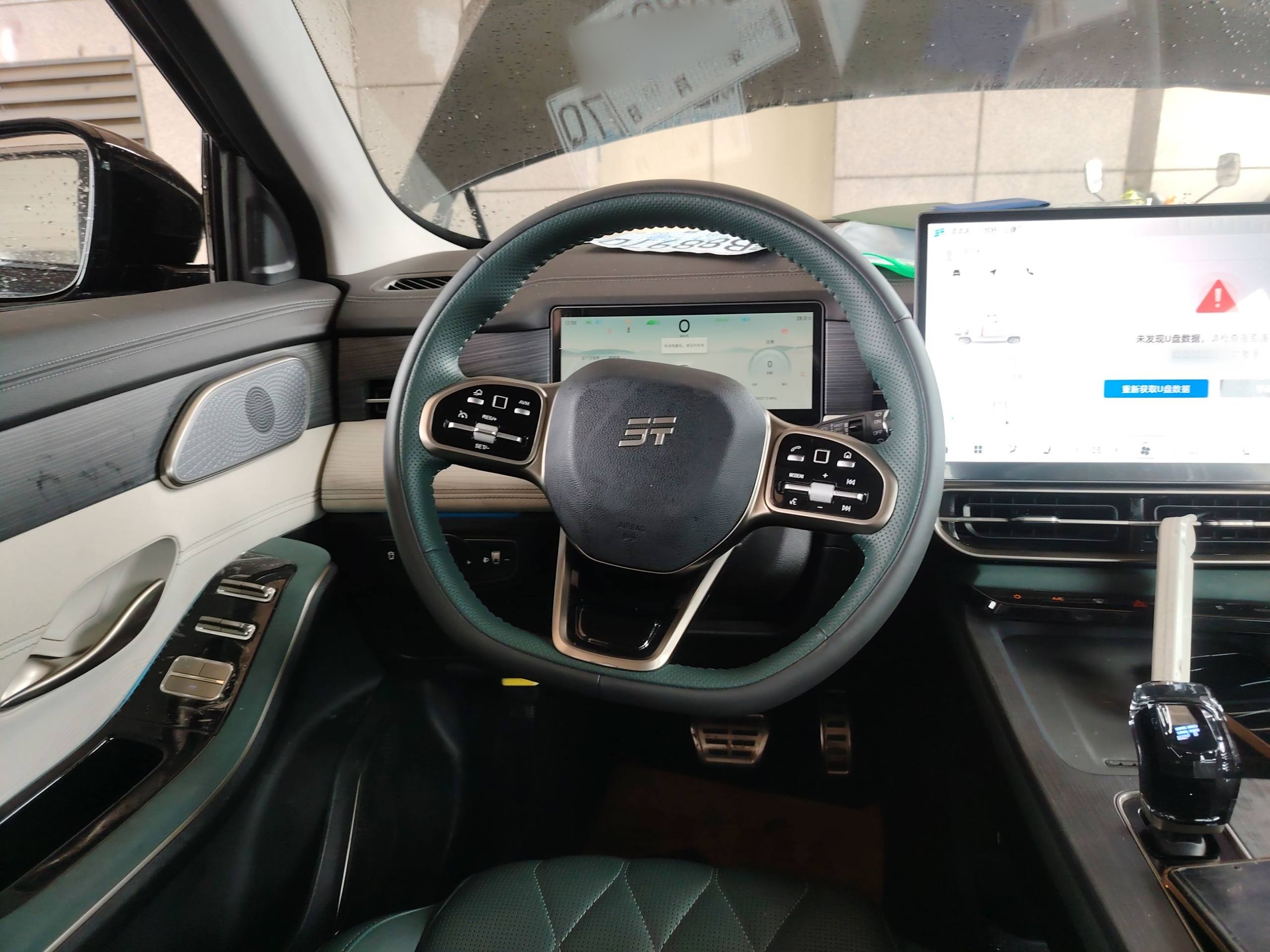

Multi-function steering wheel (tilt & telescopic)

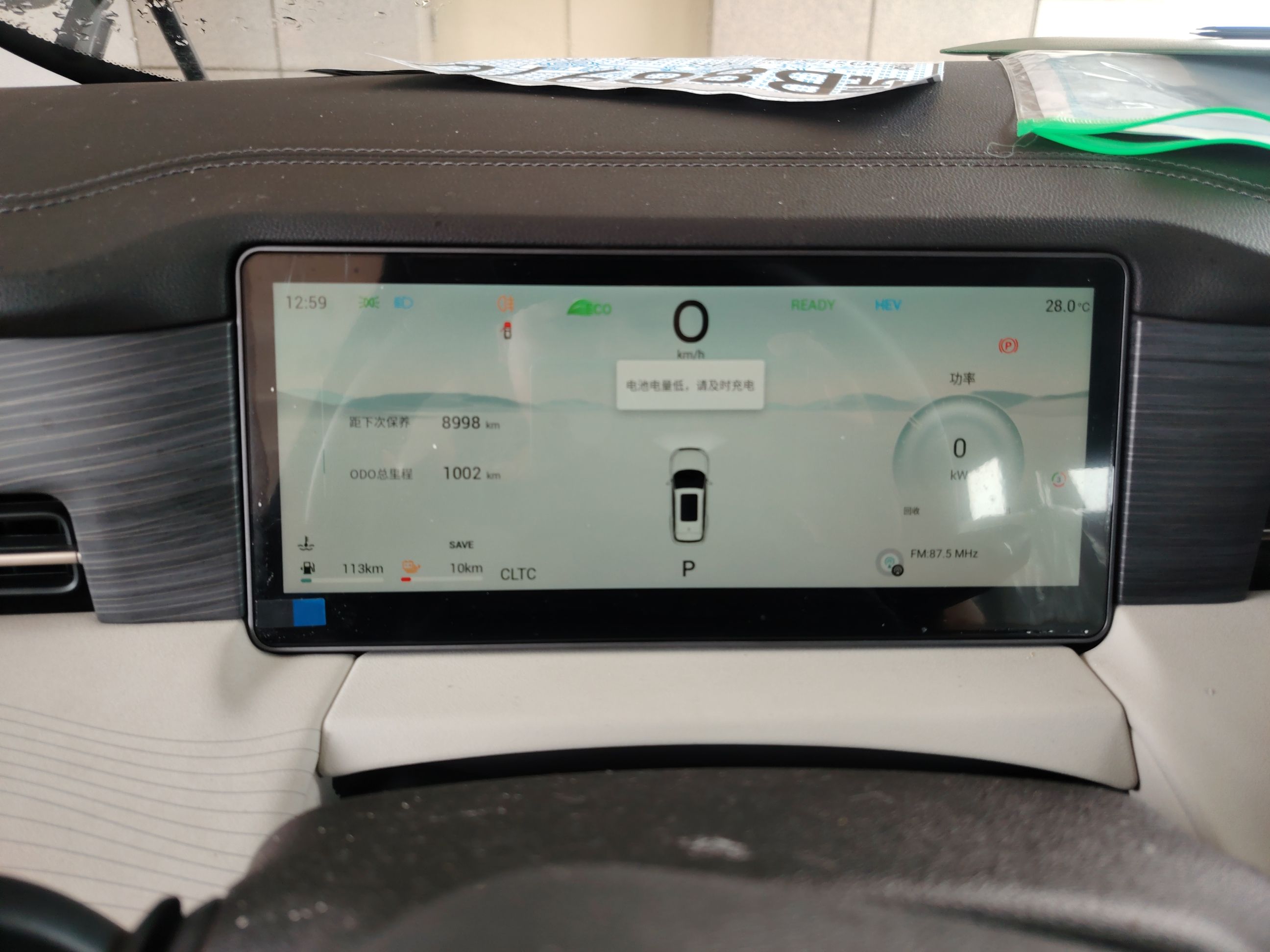

Full LCD instrument panel (10.25")
OTA updates
Mobile app control
Voice control (“Hello, Xiaojie”)

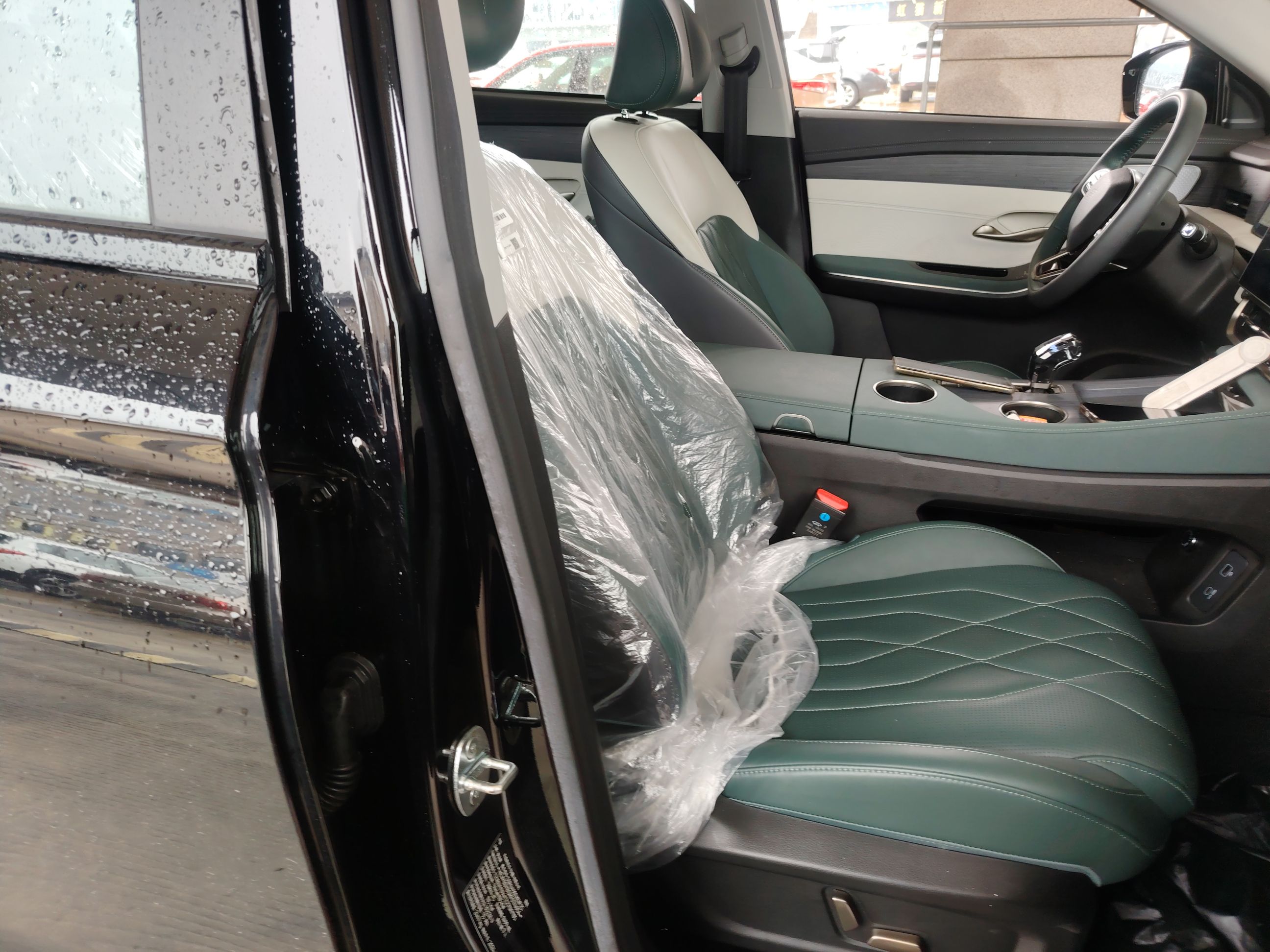

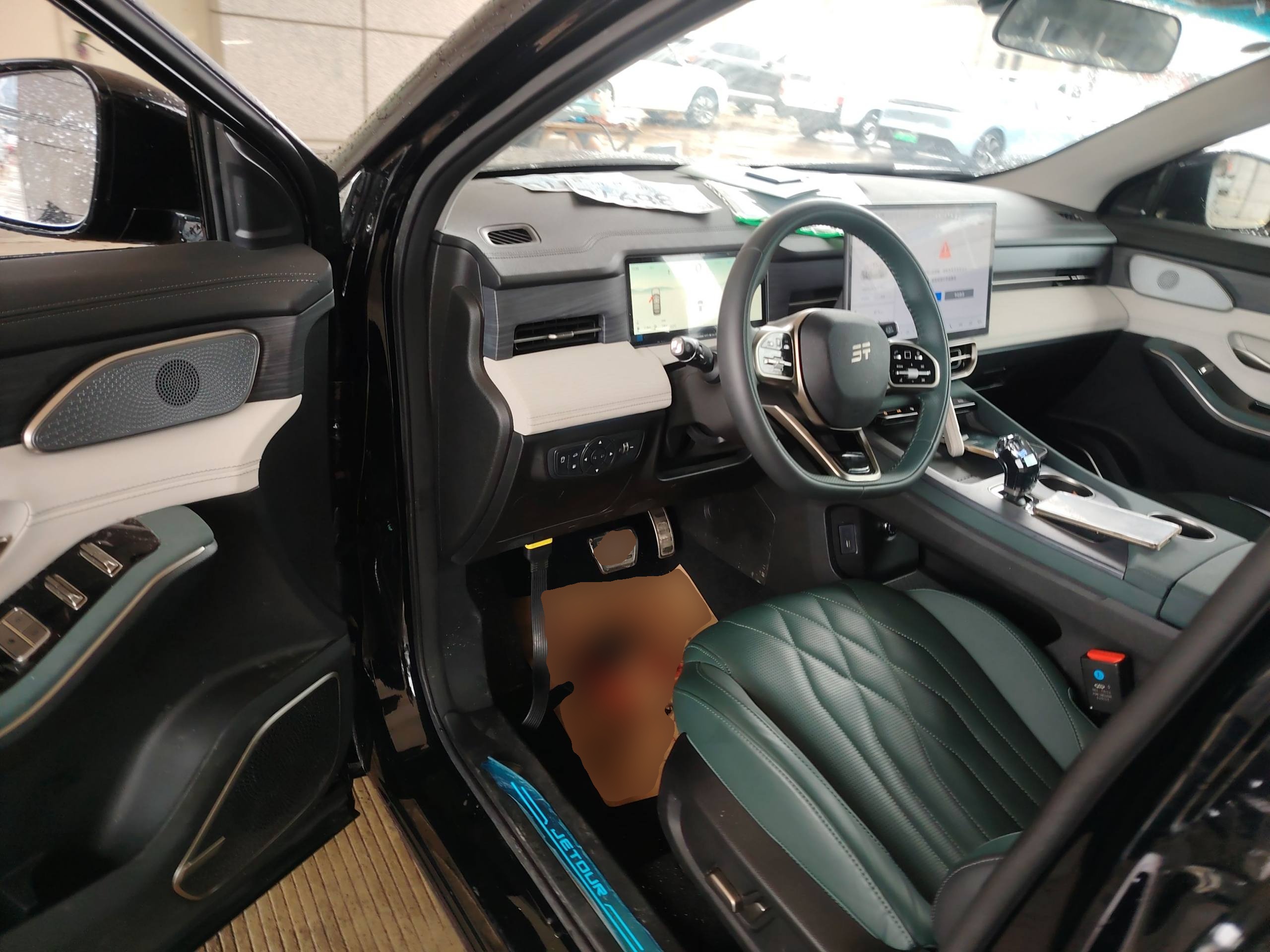

Imitation leather upholstery

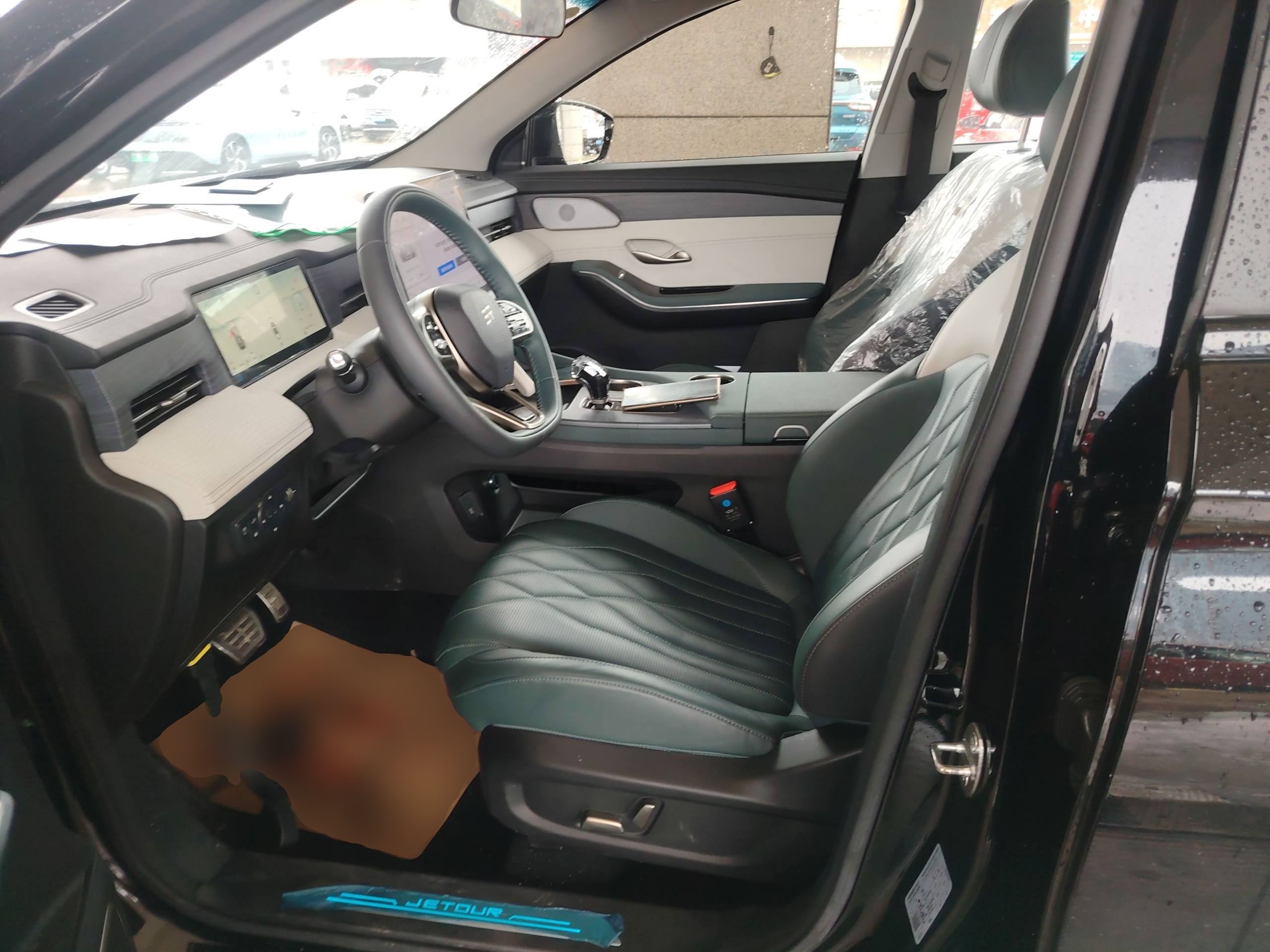

Electric driver & passenger seats

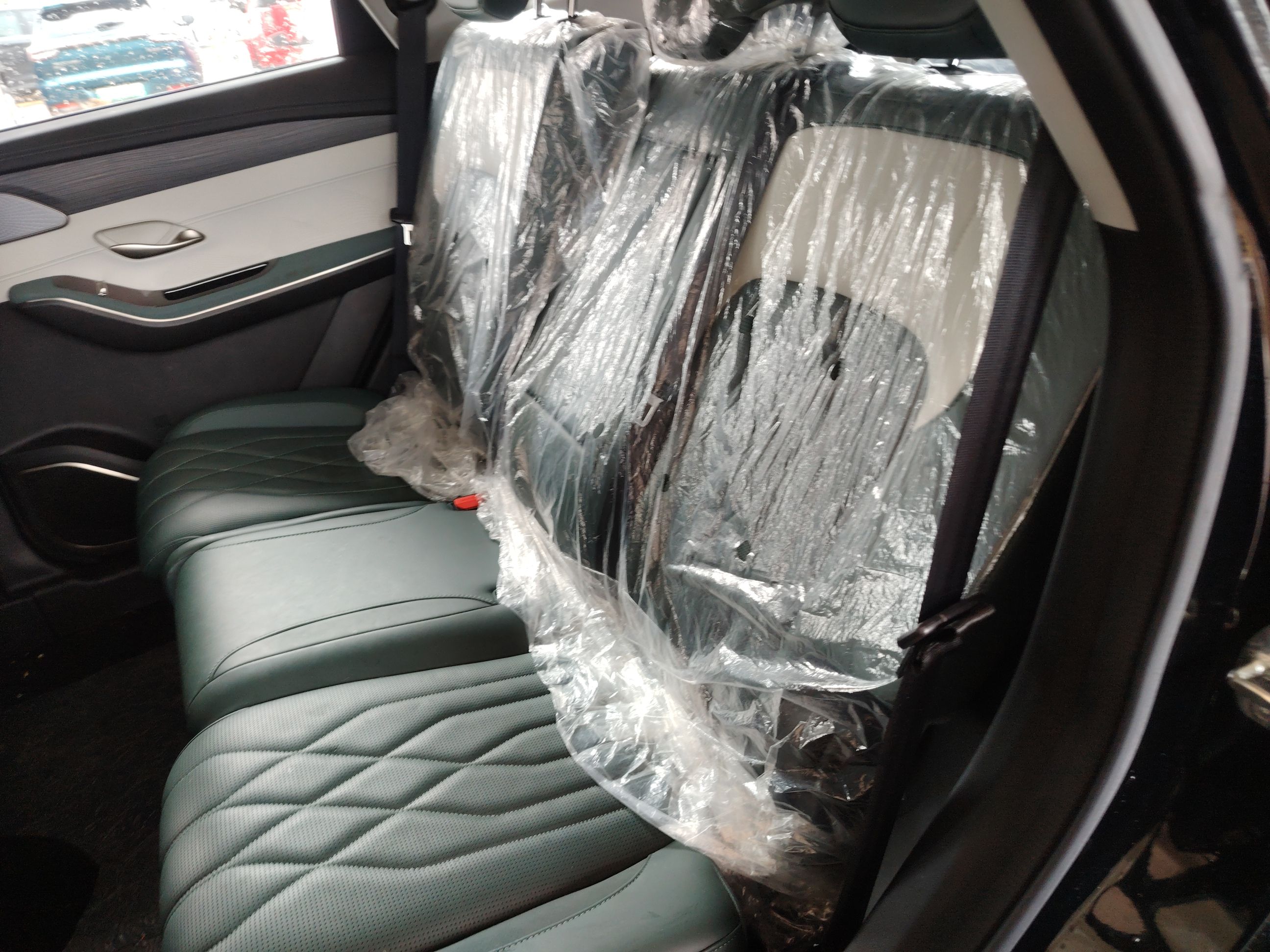

Second-row slide & recline
Heated/ventilated front seats
Third row: 2 seats
Layout: 2-3-2

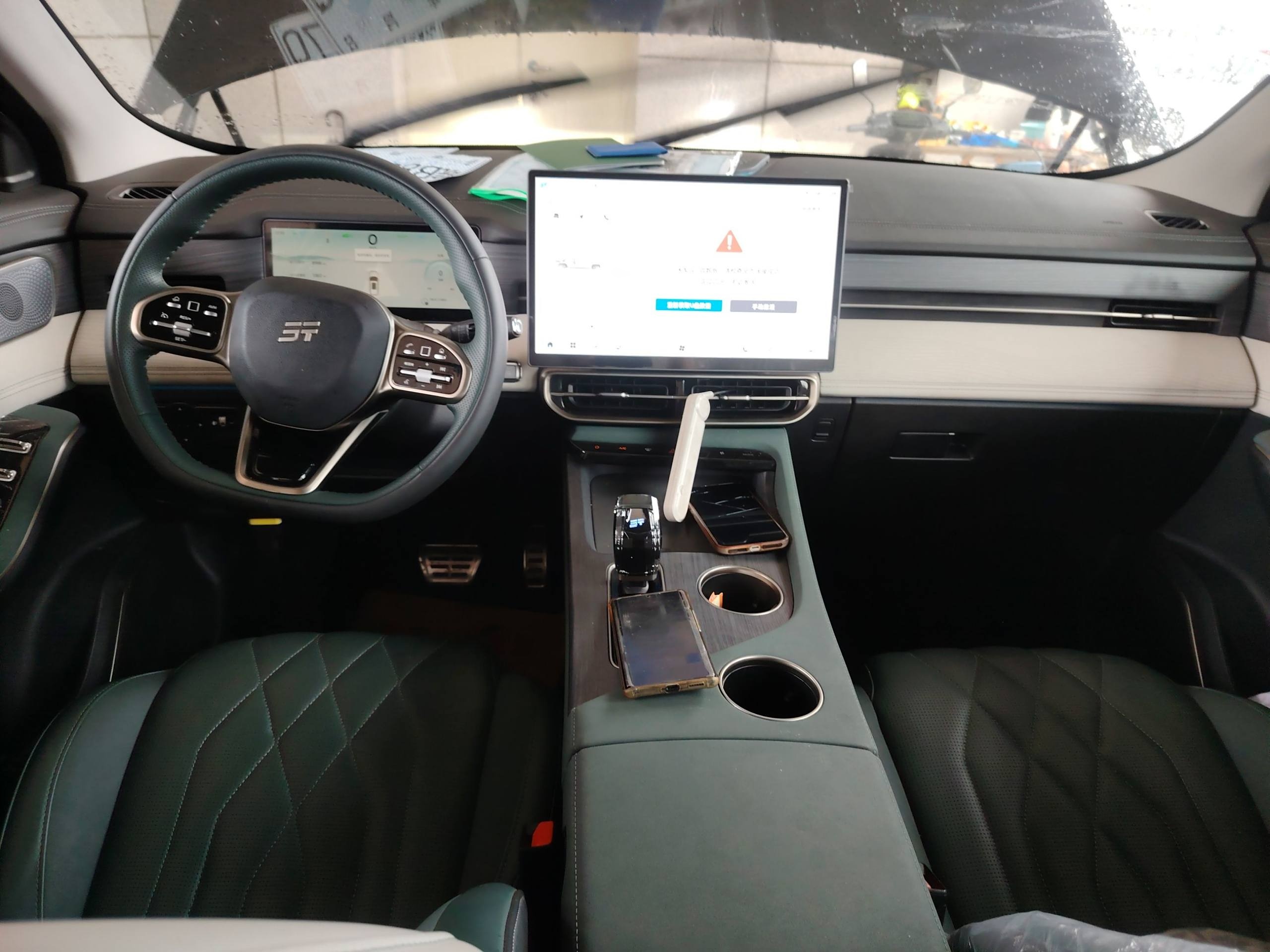

15.6" central touchscreen
Internet of Vehicles
USB + Type-C
8 speakers

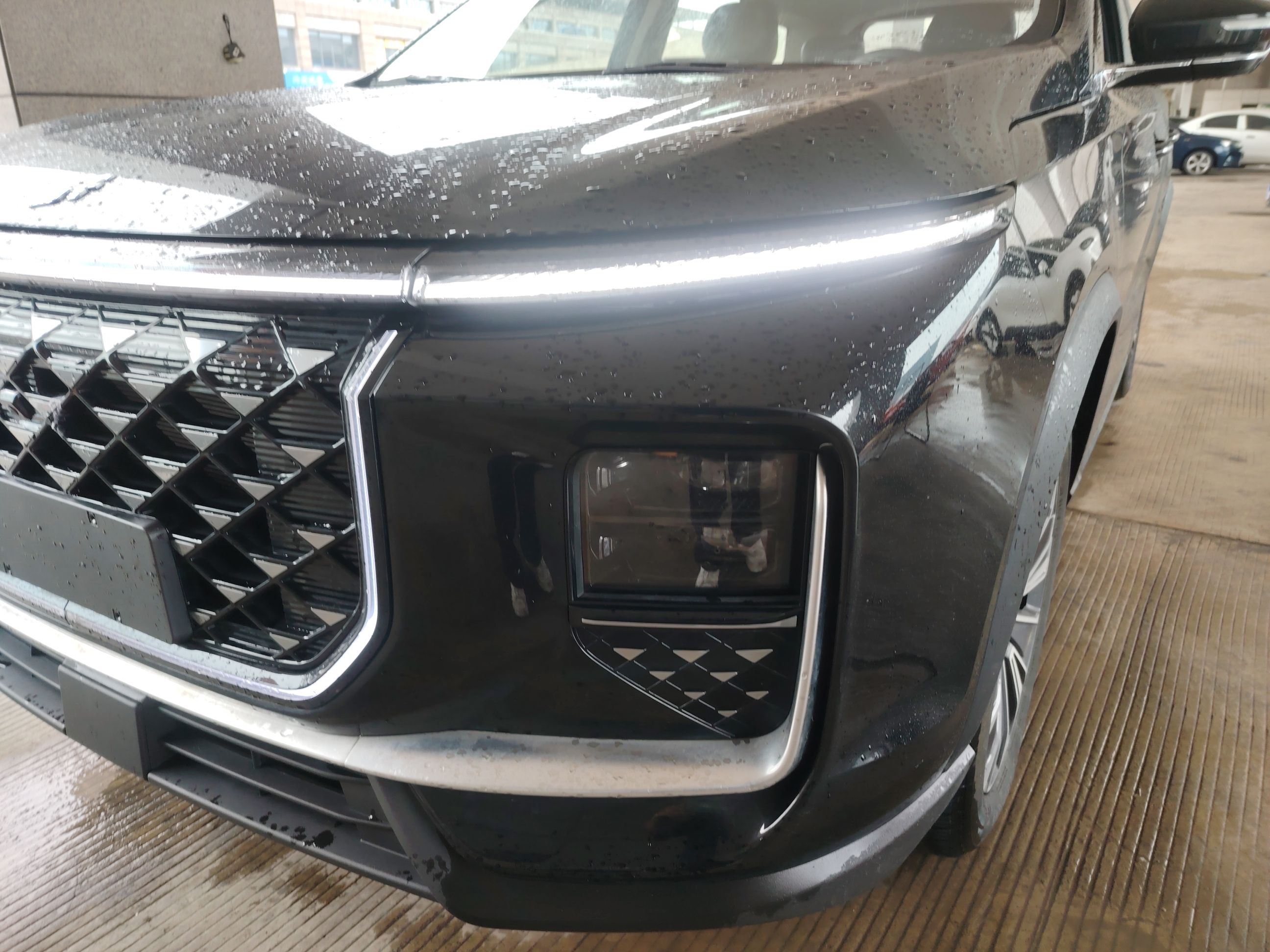

LED headlights (auto)
LED DRLs
Interior ambient lighting
Adjustable headlight height
Panoramic sunroof (openable)
One-touch anti-pinch windows
Heated, folding electric mirrors
Rain-sensing wipers
Automatic climate control
Rear seat air vents
Dual-zone temperature control
Pure Electric Range:
CLTC: 108 km
WLTC: 84 km
